Glass Condensate Traps & Fittings

The Glass Condensate Trap System from Scientific Glass Laboratories of Stoke-on-Trent provides confidence in bacteria control through experience in laboratory glass product design.

To Place an Order for Glass Traps and Fittings call SGL on 01782 816237 or Email Us

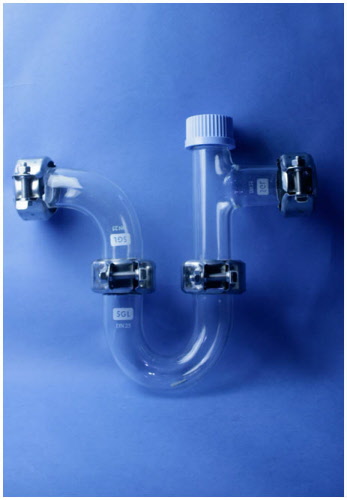

Running Trap - Horizontal Inlet / Outlet

SGL
Glass Condensate Traps - "Running Trap" Horizontal Inlet / Outlet DN    dim 'X' (mm) dim 'Z' (mm) Item Ref.
20  110 150   TA20/1
25 120 170 TA25/1
40 125 195 TA40/1
                                              50 130 215 TA50/1

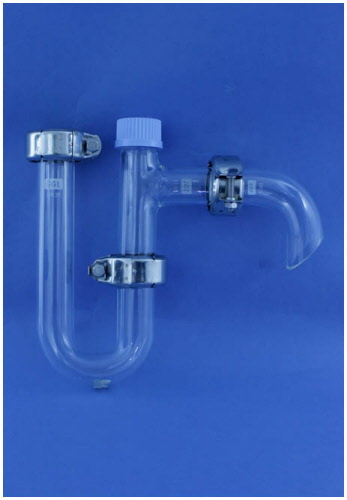

S' Trap - Vertical Inlet / Horizontal Outlet (includes discharge bend)

SGL
Glass Condensate Traps - "S Trap" Vertical Inlet / Horizontal Outlet (includes discharge bend)  DN    dim 'X' (mm) dim 'Z' (mm) Item Ref.
20  110 175   TA20/2
25 120 185 TA25/2
40 125 200 TA40/2
                                              50 130 215 TA50/2

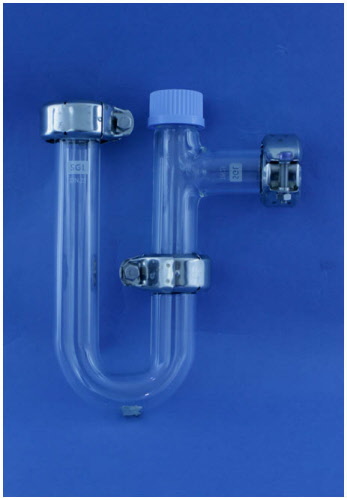

P' Trap - Vertical Inlet / Horizontal Outlet

SGL
Glass Condensate Traps - "P Trap" Vertical Inlet / Horizontal Outlet  DN    dim 'X' (mm) dim 'Z' (mm) Item Ref.
20  110 175   TA20/3
25 120 185 TA25/3
40 125 200 TA40/3
                                              50 130 215 TA50/3

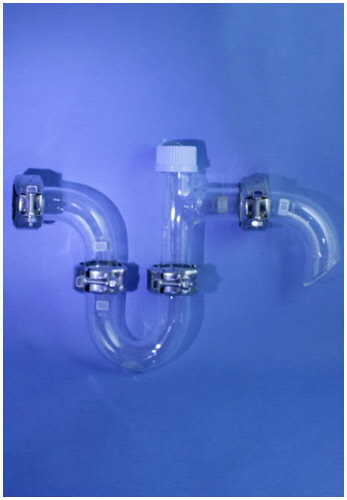

S' Trap - Horizontal Inlet / Outlet (includes discharge bend)

SGL
Glass Condensate Traps - "S Trap" Horizontal Inlet / Outlet (includes discharge bend)  DN    dim 'X' (mm) dim 'Z' (mm) Item Ref.
20  110 150   TA20/4
25 120 170 TA25/4
40 125 195 TA40/4
                                              50 130 215 TA50/4

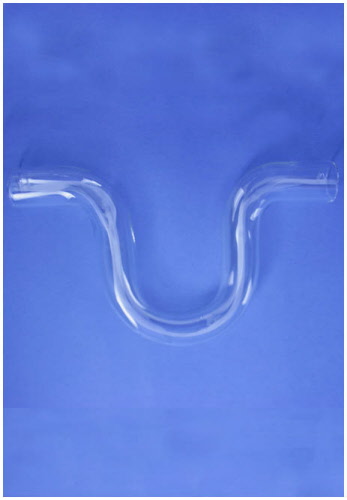

Fan Coil Trap - Horizontal Inlet / Outlet

SGL
Fan Coil Trap - Horizontal Inlet / Outlet  DN    dim 'X' (mm) dim 'Z' (mm) Item Ref.
20  55 90   TA20/F




Running Trap - Horizontal Inlet / Outlet (Negative Pressure)

SGL
Glass Condensate Traps - Running Trap Horizontal Inlet / Outlet Negative Pressure DN    dim 'X' (mm) dim 'Y' (mm)
dim 'Z' (mm) Item Ref.
20  100 110 250
  TA20/1/100NEG
25 100 120 270
 TA25/1/100NEG
40 100 125 295
 TA40/1/100NEG
                                              50 100 130315 TA50/1/100NEG
