Chromatography Columns

SGL – Scientific Glass Laboratories Ltd of Stoke-On-Trent, Staffordshire - one of the UK’s largest manufacturers of laboratory glassware offer a comprehensive range of Laboratory Chromatography Columns.





 To Place An Order for SGL -Scientific Glass Laboratories Ltd Chromatography Columns - Call 01782 816237 or Email Us

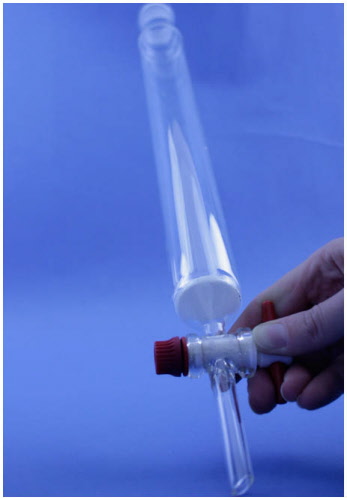

Chromatography Columns with Sintered Disc

SGL

Columns 10mm to 25mm bore fitted with 2mm bore stopcocks.
Columns 30mm and 40mm bore fitted with 4mm bore stopcocks.
Glass or PTFE s/cs - please specify - /G or /P

Por 0,1,2,3 and 4 available. Add to Code No. e.g. R1/10/0 etc.

                          Item                    Sinter Dia           Socket Size         Length mm                Each
    R1/10 10 14/23  100 32.75
             R1/20  10 14/23  200 32.75
      R1/30 10 14/23  300   32.75
        R1/40 10 14/23  400  32.75
        R2/10 20 19/26  100  33.76
        R2/20 20 19/26 200  34.94
        R2/30 20 19/26 300  34.94
        R2/40 20 19/26 400  34.94
        R2/50 20 19/26  500  34.94
        R3/30 25 24/29  300   35.74
        R3/40 25 24/29 400  35.74
        R3/50 25 24/29  500  35.74
        R5/40 30 34/35  400 41.20
        R5/50 30 34/35  500   41.20
        R6/40 40 40/45  400   55.89
        R6/50 40  40/45  500   55.89

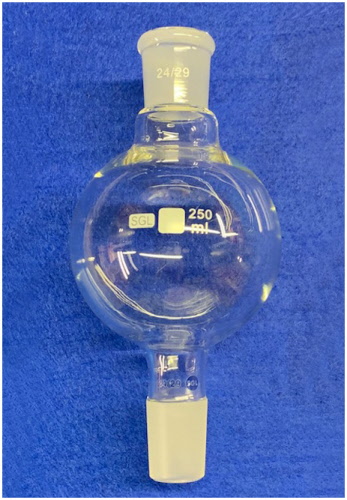

Chromatography Columns Reservoirs

SGL

Other Sizes & Joints Are Available On Request

                          Size Each       Socket       Cone
  CCR-SRB24-100-CNB24   100ml 13.75 B24 B24
  CCR-SRB24-250-CNB24 250ml 14.48 B24  B24
  CCR-SRB24-500-CNB24    500ml 17.38 B24  B24
    CCR-SRB24-1000-CNB24    1000ml 18.83 B24  B24
    CCR-SRB24-2000-CNB24   2000ml 31.12 B24  B24




Chromatography Columns

SGL





    A full range of bespoke columns are available on request.
    Up to 130mm diameter tubing.

Columns without sinters are also available
E&OE Prices & Specification Subject to Change Without Notice - January 2023. Prices Shown GB Pounds Sterling. Ex VAT.
